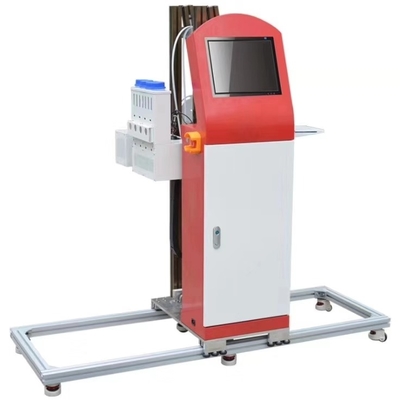

Hotels 3D Wall Printer Printing Machine Automatic Ink Marking Machine Glass Vertical UV Wood Art Inkjet Direct Painting

Model

BCX-S30 Wall Inkjet Printer

Ink

Special ink for synthetic pigment wall painting

Assembly method

Self steering fastener, pulley, track fastener, quick disassembly and assembly

Control mode

Wired handle, wired control

Motor technology

DC brushless servo motor, vector positioning technology, five star grating

Feeding system

Negative pressure automatic feeding, 340 ml pigment library, multi-color one, special color for, with a sealed plug and dust cover

Painting speed

High, medium, low, three-speed adjustable

Painting resolution

360*720dpi or 720*720dpi or 720*1080dpi or 720*1440dpi

Picture type

Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files (some formats need to be converted)

Actual painted size

Height 2100mm, wide width can be extended

Power Supply

AC110V(90-132V)/AC220V(180-264V)AC,47-63HZ

Power consumption

No-load 20W, general 75W, Max to 250W

Noise

Standby <20dBA, drawing <50dBA

Operation

-10°-60°(14°-140°)10%-80% relative humidity, non condensable state

Storage

-30°-60°(-22°-140°)10%-80% relative humidity, non condensable state

System platform

Windows XP/Win 7/Win 8/Win 9/Win 10

Motherboard configuration

Dual core CPU,512MB memory,USB2.0/3.0 data interface

Machine language

Chinese,English(Customizable)

Print mode

Pass

Speed (per square meter per hour)

Quick mode

A

6 Plane / hour

Production model

B

4 Plane / hour

Quality model

C

3 Plane / hour

High precision model

D

2 Plane / hour

Equipment appearance

Actual size

Machine package size

Cross track packing size

Length

3000mm

Length 2610mm

Length 1200mm

Width

670mm

Width 450mm

Width 900mm

Height

2640mm

Height 560mm

Height 390mm

Weight

60kg

Rack packing weight 61kg

Cross track packing weight 56kg

Package type

Wooden box

Note: the above technical parameters shall be the design parameters. If there is any difference, the actual use efficiency of the equipment shall prevail.
